Descripción

Cuadro

ACX Carbon All-Round Aprobado por UCI, Cableado Interno, 12x142mm

Suspensión

Full Carbon, Cónica 1-1/8″ a 1-1/2″, Freno a Disco Flat Mount

Ergos

SHIMANO 105 Di2 ST-R7170, 2×12 SPEED

Cambios

SHIMANO 105 Di2 RD-R7150

Descarrilador

Shimano 105 Di2 FD-R7150 DM

Plato palanca

SHIMANO 105 FC-R7100 50/34T

Piñón

Shimano 105 CS-R7101, 11-34T

Frenos

FRENO DELANTERO

Shimano 105 BR-R7120 Disco Hidráulico, 160mm CL

FRENO TRASERO

Shimano 105 BR-R7100 Disco Hidráulico, 160mm CL

Llantas

POLYGON WR4 CARBON DISC

Cubiertas

Schwalbe One, Addix, Raceguard, Microskin, 700x28C, Tube Type*

Peso

8.25 Kg Aprox. en talle S

Mazas

– 100mm Delantera
– 12X142mm, 6 Tornillos

Manillar

LINC CARBON INTEGRATED, W: 380mm (S) / 400mm (M, L), BB: INTEGRATED, R/D: 125mm, B/R: 75mm

Stem

LINC CARBON INTEGRATED, EXT: 100mm (S) / 110mm (M, L), BB: INTEGRATED, R/D: 10degree

Asiento

LINC GLYD, CR-MO ø 7mm

Cadena

KMC X12 – 12v

Portasilla

POLYGON XPERT ALLOY, DxL: 27.2 x 350mm

Caja Pedalera

TOKEN T47 68 FOR 24mm SPINDLE

Size	S	M	L
Rider Height	5’4″–5’7″	5’6″–5’9″	5’8″–5’11»
Seat Tube Length	470 mm	520 mm	560 mm
Seat Tube Angle	74°	73.5°	73°
Effective Seat Tube Angle	74°	73.5°	73°
Head Tube Length	125 mm	136 mm	162 mm
Head Tube Angle	71.5°	72°	72°
Effective Top Tube	525.1 mm	542.4 mm	564.3 mm
BB Height	268 mm	270.5 mm	270.5 mm
BB Offset	76.5 mm (drop)	74 mm (drop)	74 mm (drop)
Chainstay Length	415 mm	415 mm	415 mm
Wheelbase	989.3 mm	995.2 mm	1012.3 mm
Frame Reach	369 mm	378 mm	387 mm
Frame Stack	544.3 mm	555 mm	580 mm
Standover Height	2’5″	2’6″	2’8″
Crank Arm Length	165 mm	170 mm	170 mm
Handlebar Width	380 mm	400 mm	400 mm
Stem Length	100 mm	110 mm	110 mm
Headset Spacer Height	40 mm	40 mm	40 mm

* All dimensions are in millimetres (mm), feet/inches (ft/in), and degrees (°) unless stated otherwise.

Guía de Talles

Guía de Talles
¿Como Medir?

ALTURA	TALLE	MEDIDA	ENTREPIERNA
158-165cm	XS	48-51	71-74
165-170cm	S	51-53	75-78
170-179cm	M	53-55	79-88
179-186cm	L	55-58	89-98
186-195cm	XL	58-61	99-102

Información adicional

Color	Azul
Talle	L, M, S

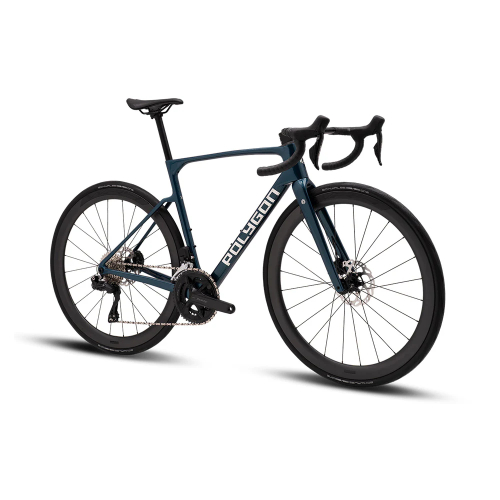

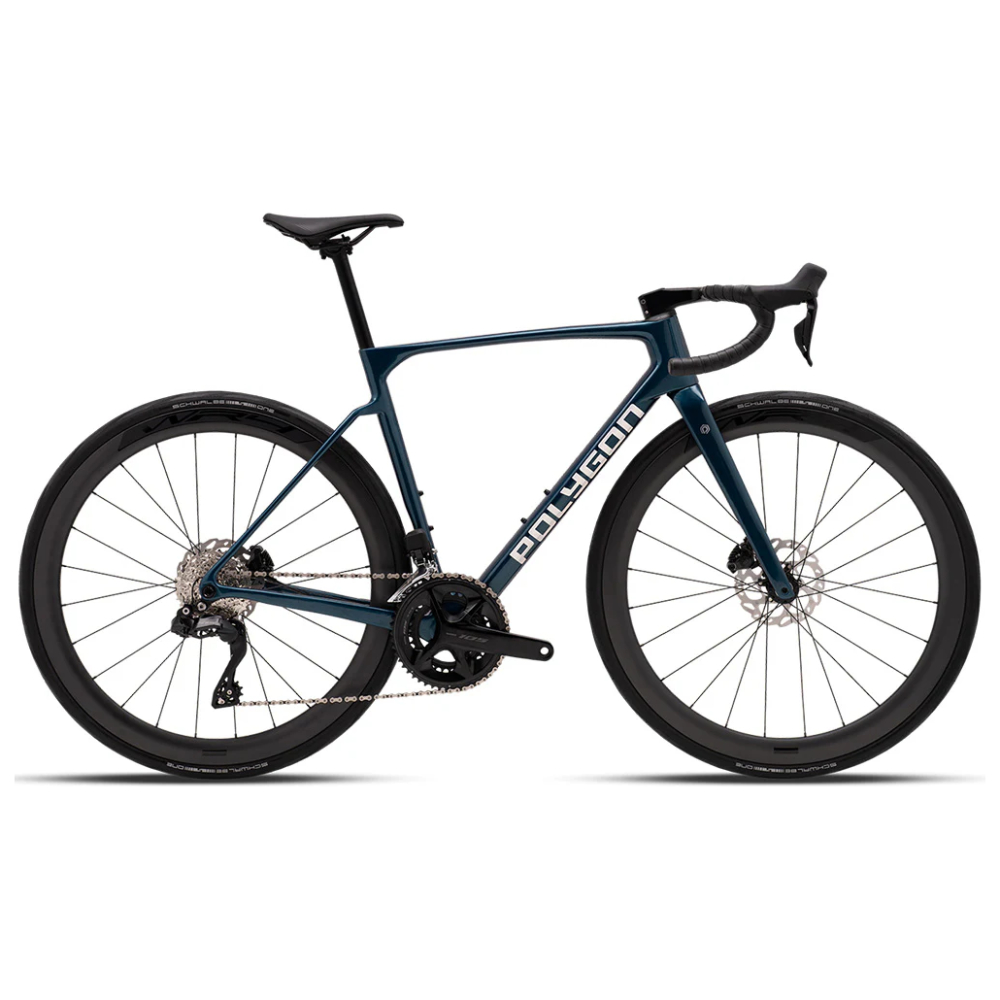

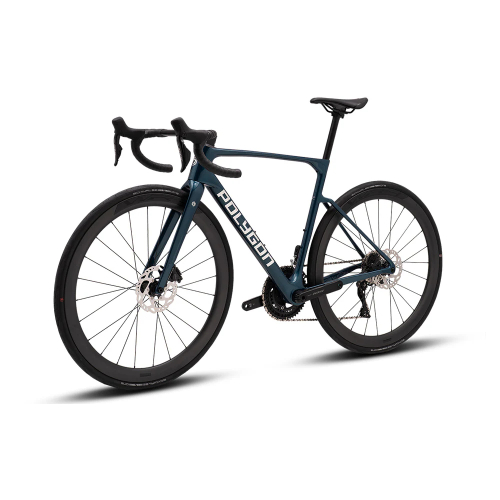

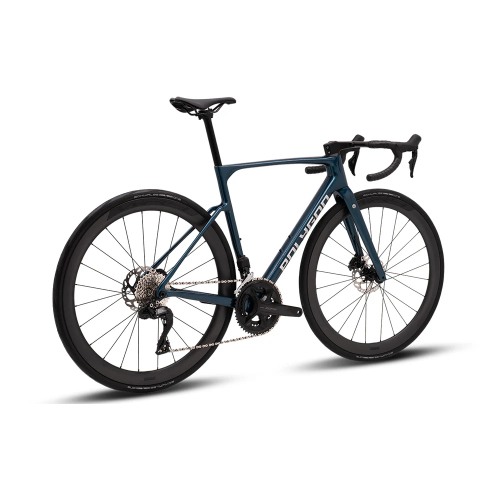

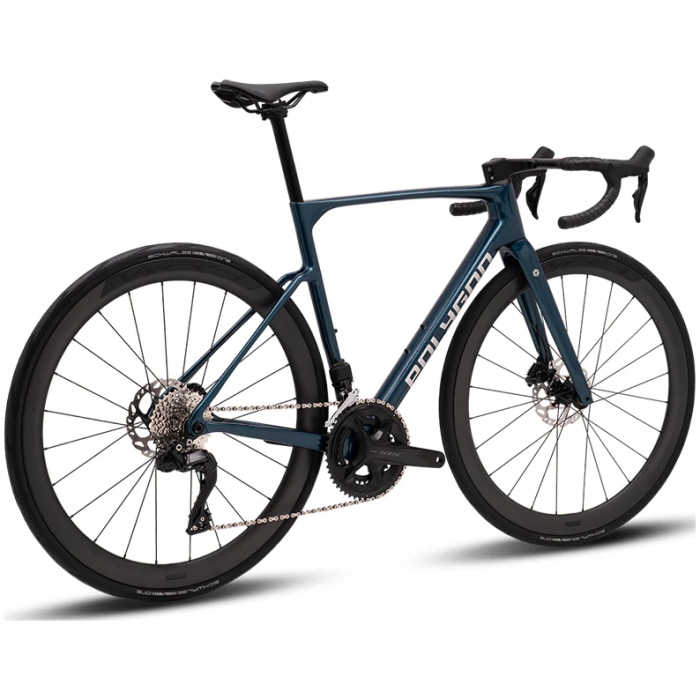

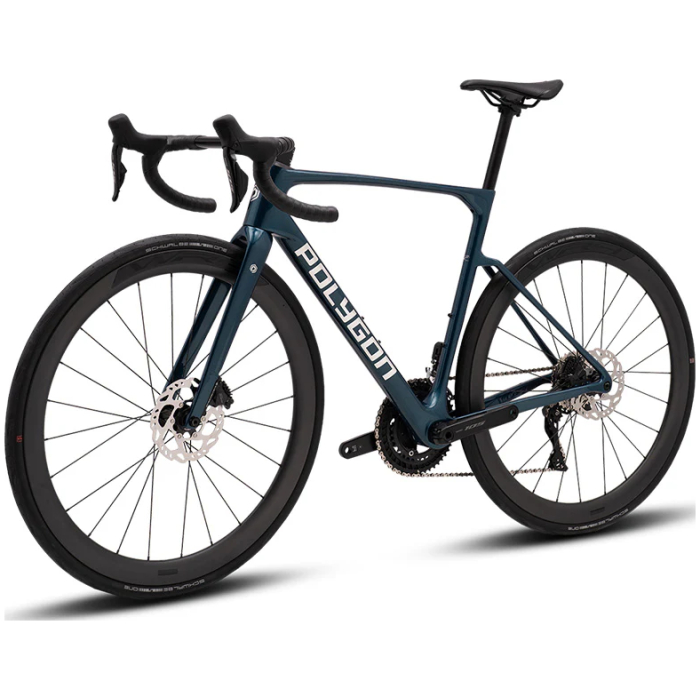

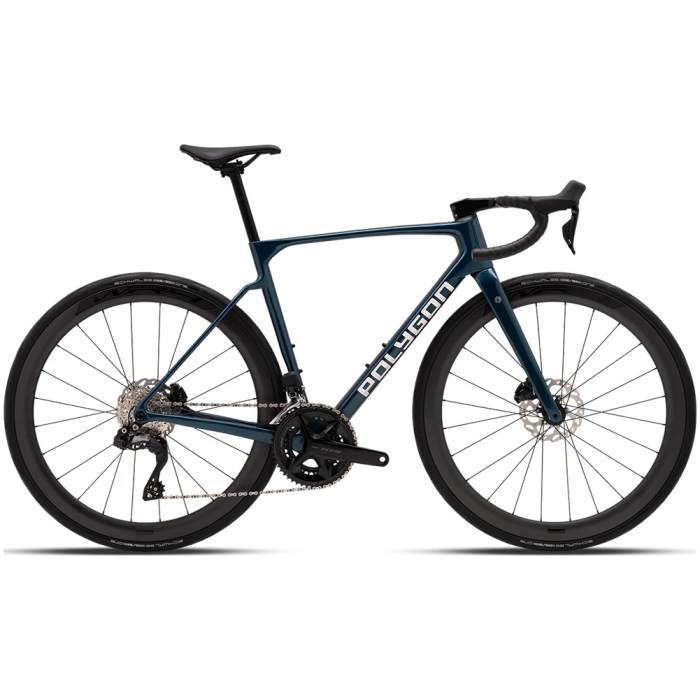

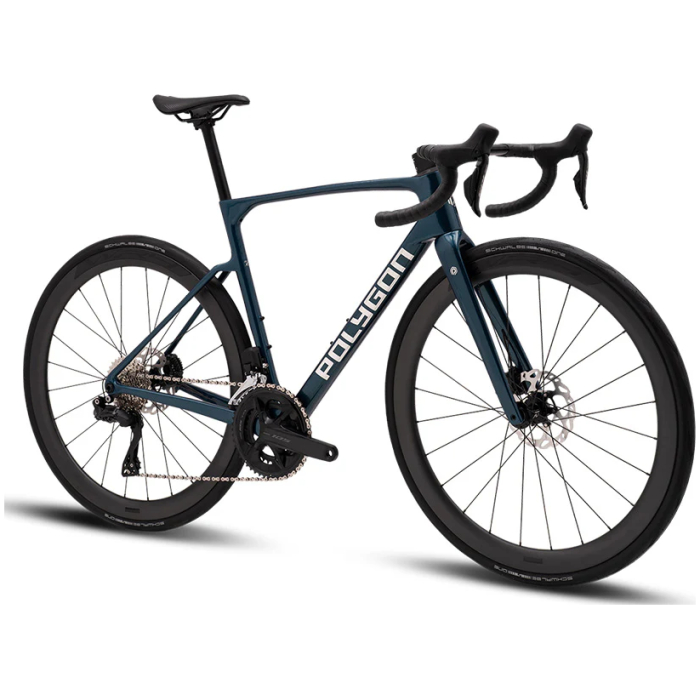

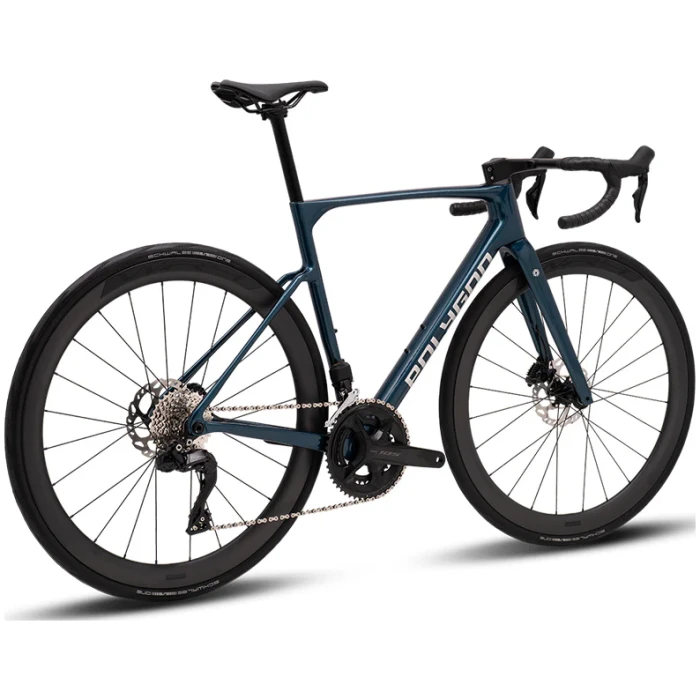

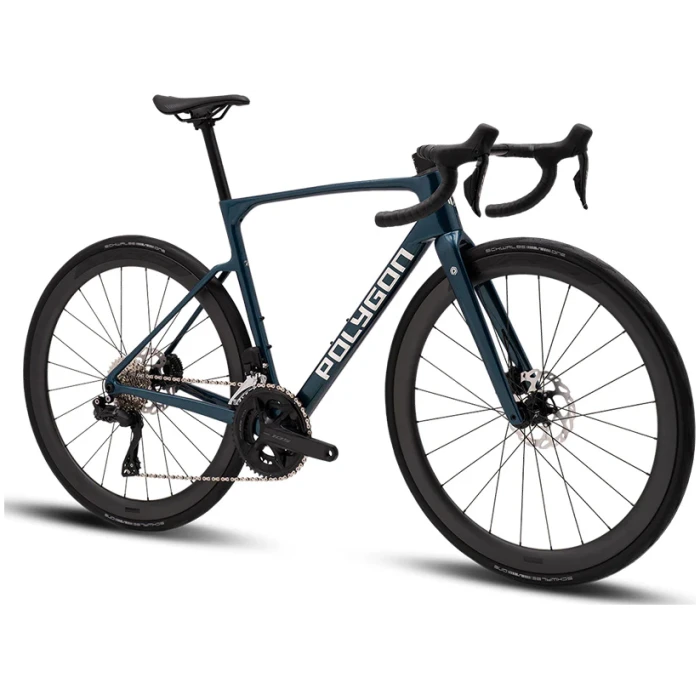

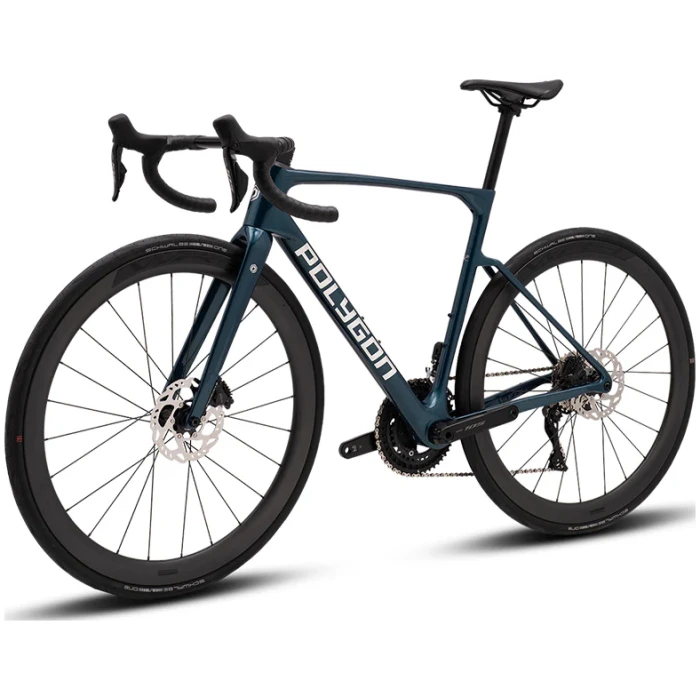

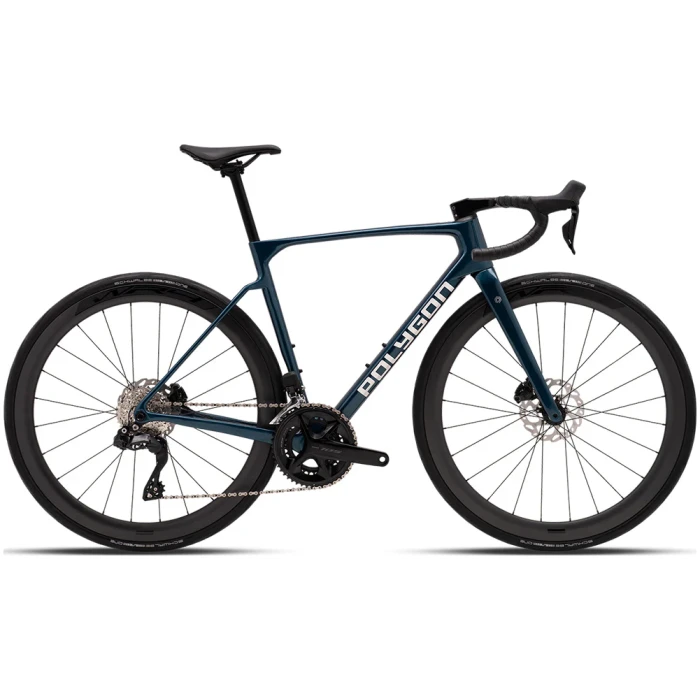

Bicicleta de Ruta Polygon Strattos C7 – 2×12 Shimano 105 Di2
