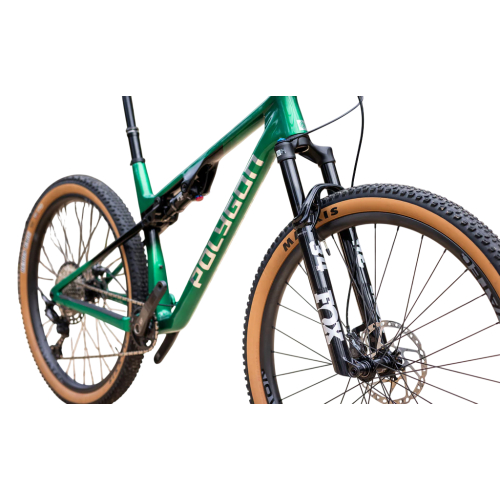

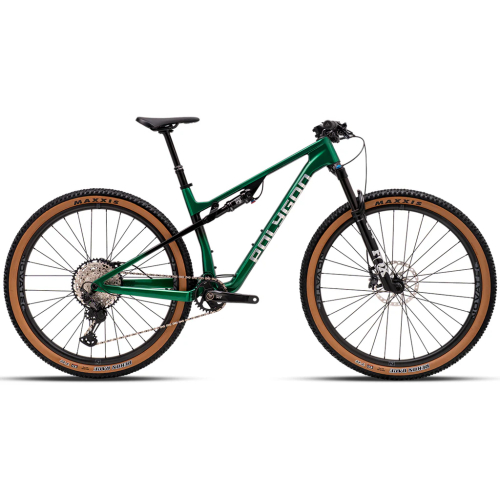

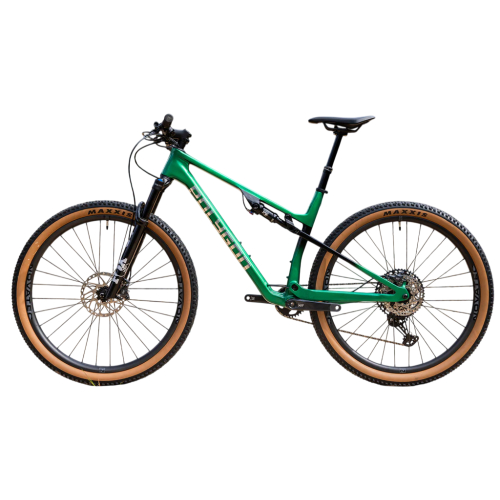

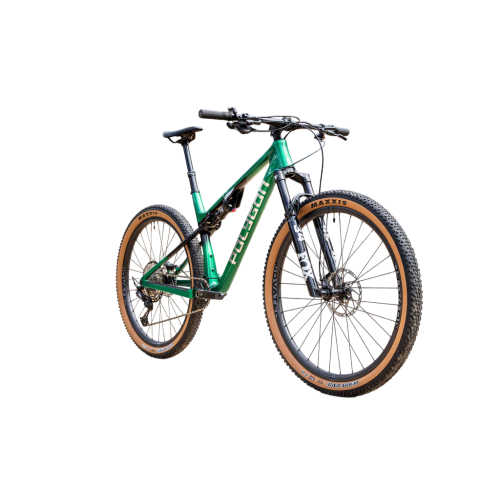

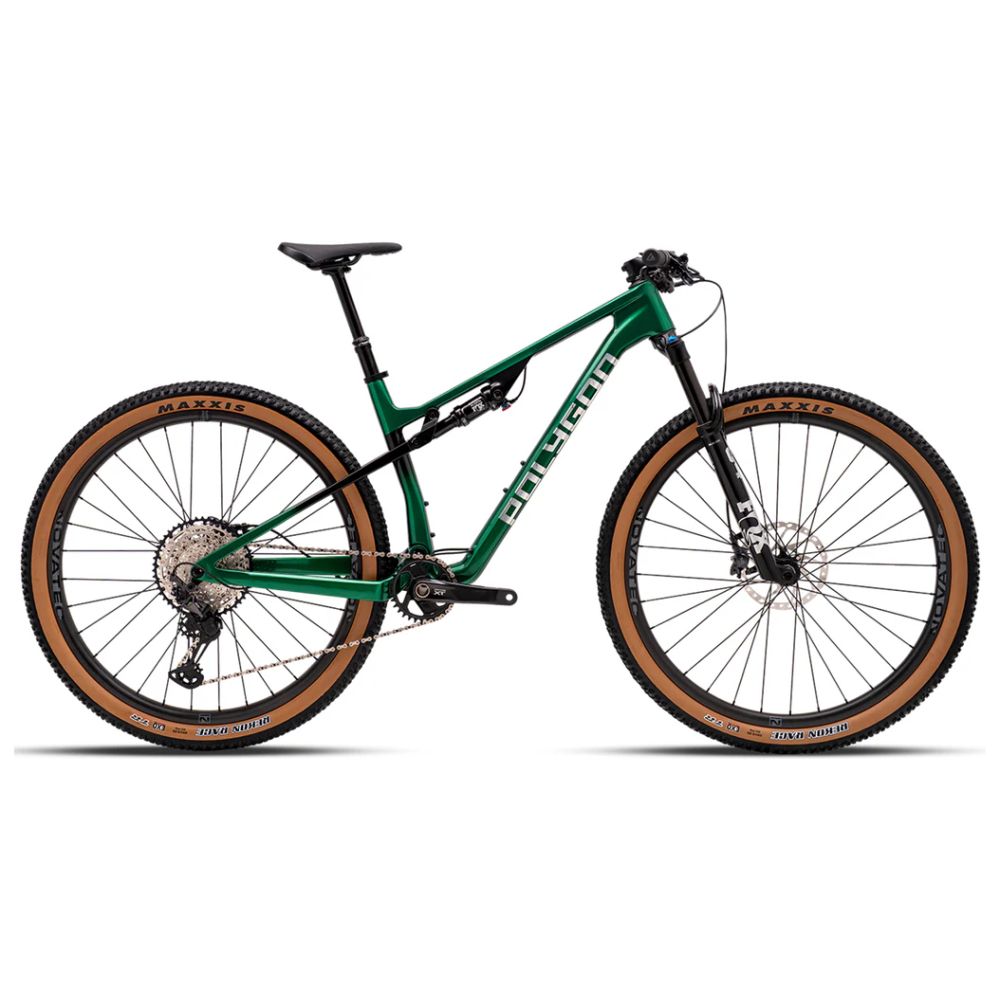

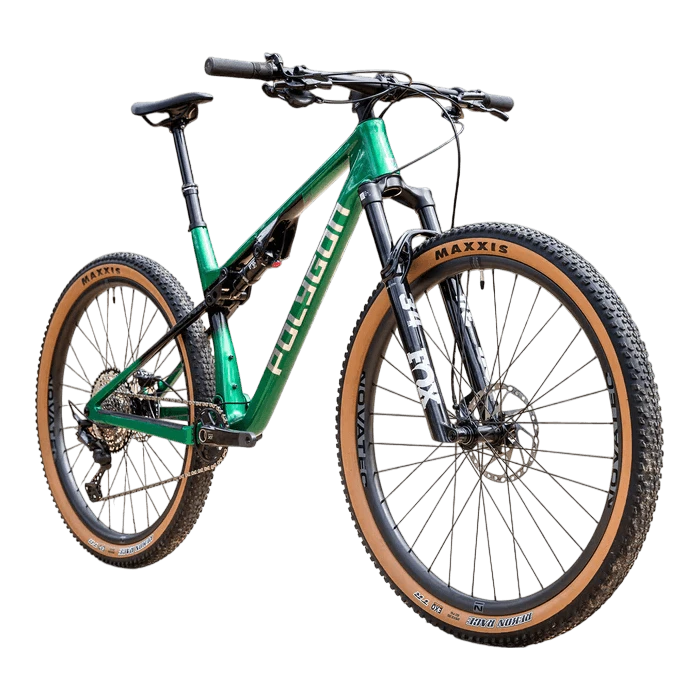

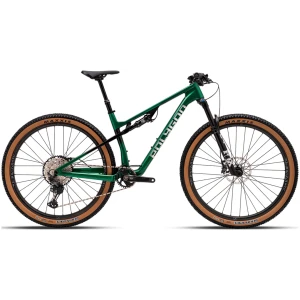

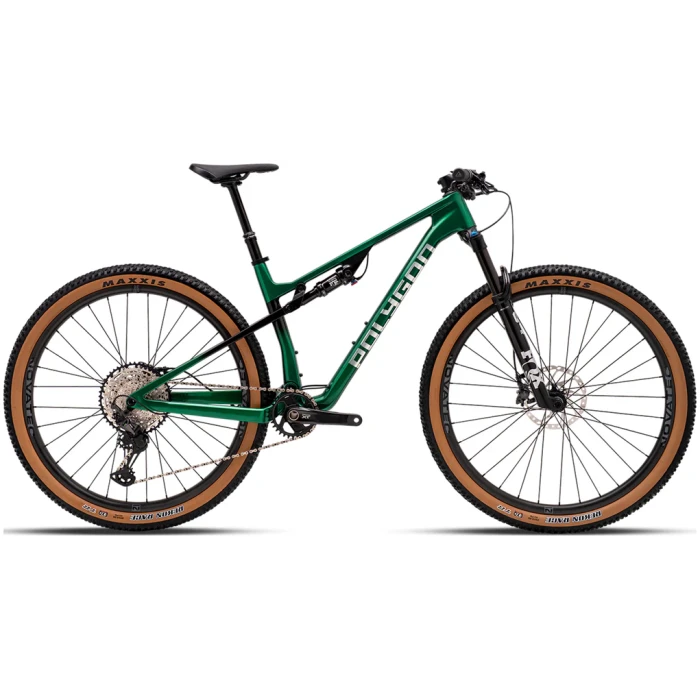

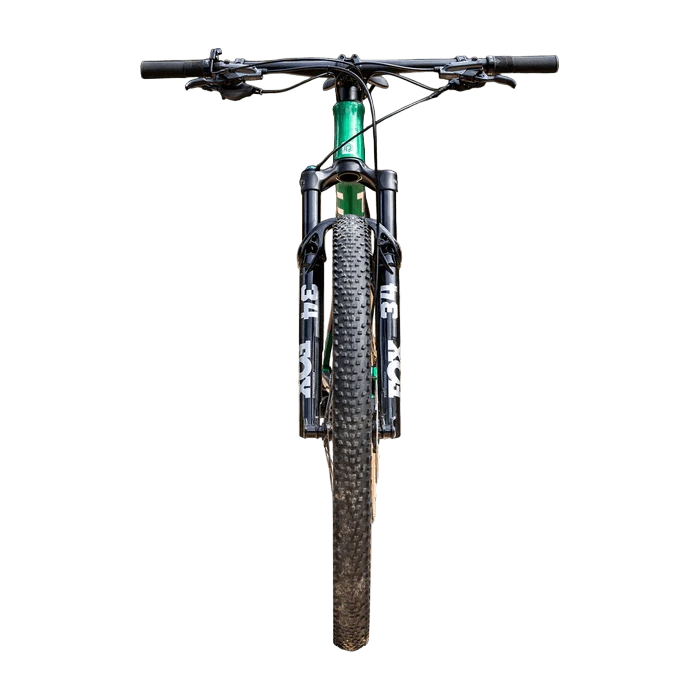

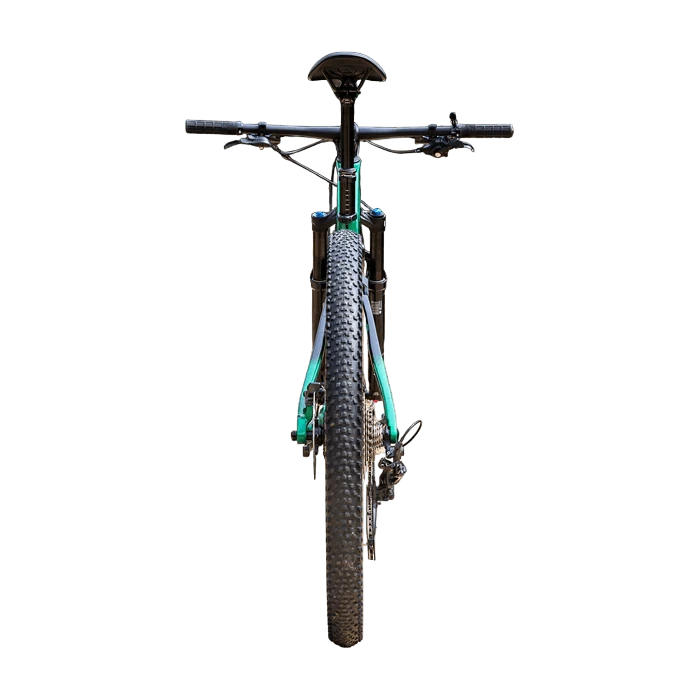

Bicicleta MTB R29 Polygon Syncline DR8 – Carbono, 1×12 Shimano Deore XT – FOX Aire
$11.371.800
18 cuotas s/interés de $631.767
$7.370.611
Efectivo/transferencia
Guía de Talles
- Guía de Talles
- ¿Como Medir?
| ALTURA | TALLE | MEDIDA | ENTREPIERNA |
| 158-165cm | XS | 48-51 | 71-74 |
| 165-170cm | S | 51-53 | 75-78 |
| 170-179cm | M | 53-55 | 79-88 |
| 179-186cm | L | 55-58 | 89-98 |
| 186-195cm | XL | 58-61 | 99-102 |
Descripción
Cuadro

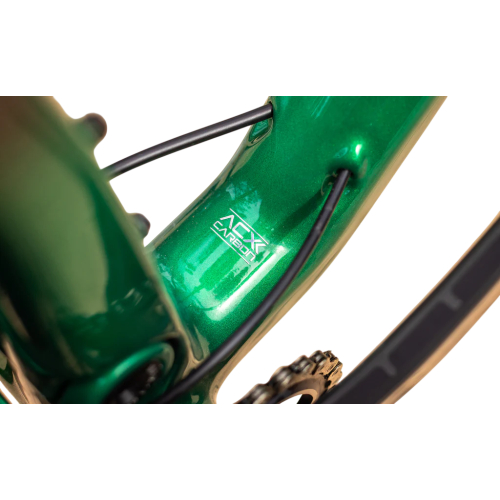

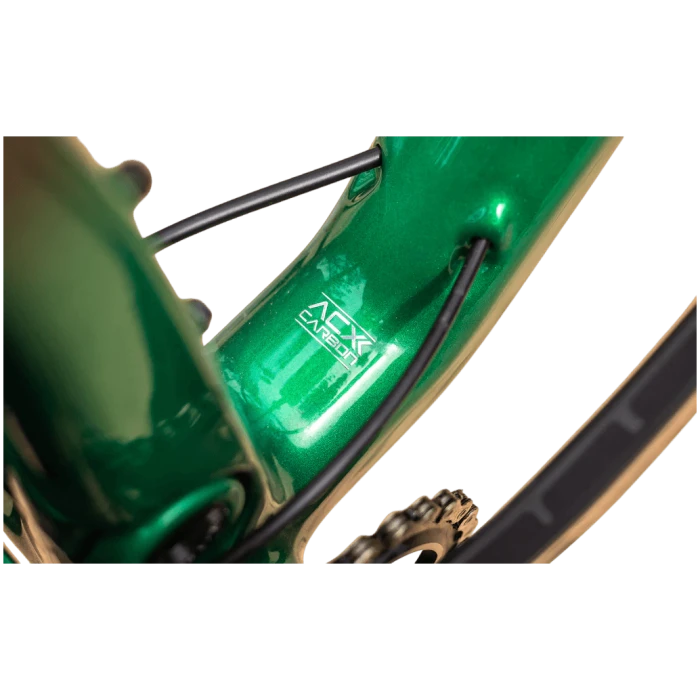

ACX Full Carbon XC Frame, 110mm Rear Travel, BSA Threaded 73mm BB Shell, UDH Compatible, Internal Brake and Shifter Routing, ISCG Mount, Boost 12x148mm Thru Axle, Disc Brake Post Mount 160mm

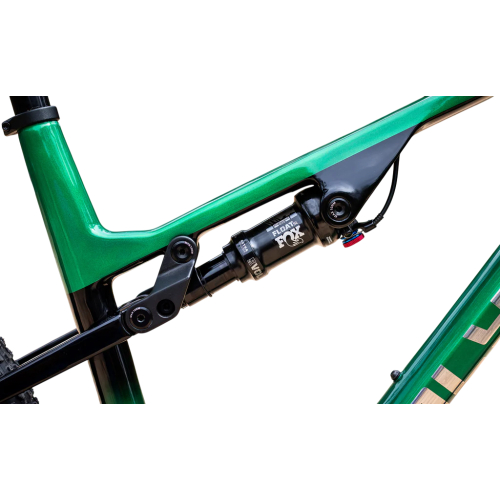

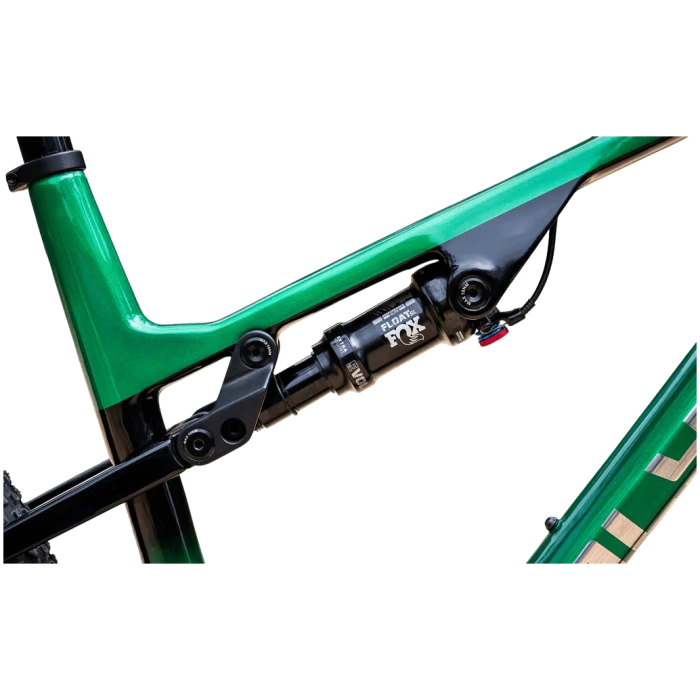

Suspensión
Suspensión

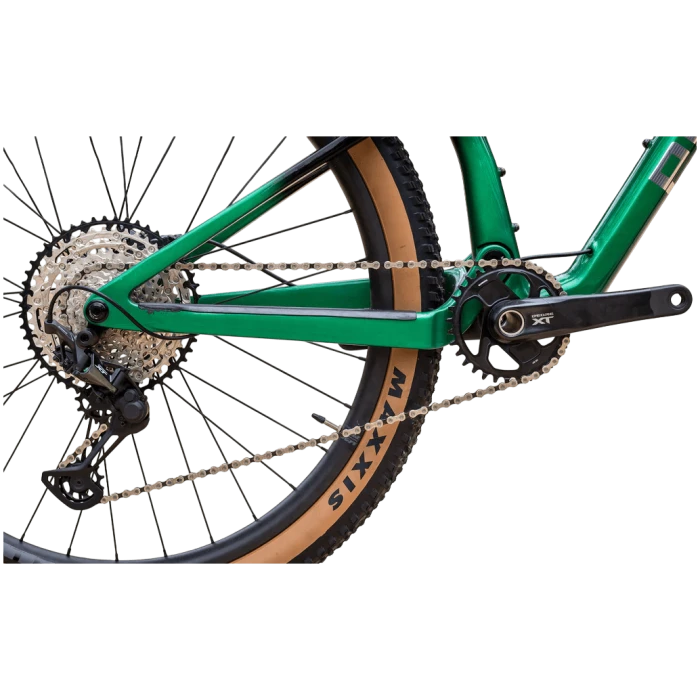

Shifter
Shimano Deore XT SL-M8100-R, 1×12-Speed Trigger
Cambios

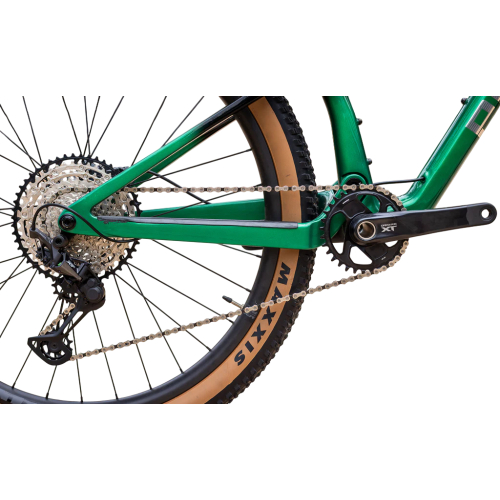

Shimano Deore XT RD-M8100, 12-Speed
Plato palanca
Shimano Deore XT FC-M8200, 170mm (S-M) / 175mm (L-XL)
32T, Max Chainring 34T
Piñón
Shimano SLX CS-M7100, 10-51T, 12-Speed
Frenos
Shimano Deore XT BR-M8200, Hydraulic Disc, 2-Piston
Shimano SM-RT64, Front 180mm / Rear 160mm
Llantas
Novatec M30 Carbon, 30mm Internal Width, 32H, Tubeless Ready **
Cubiertas
Maxxis Rekon Race 29×2.35″
Peso
12,2 Kg
Mazas
Novatec 12x148mm, 32H, Center Lock, Micro Spline
Manillar
Polygon Expert, Alloy, 760mm Width, 31.8mm Bore, 9° Bend
Stem
Polygon Expert, Alloy, 70mm Length, 31.8mm Clamp, -17° Rise
Asiento
Fizik Terra Argo X7, Cr-Mo Ø7mm Rails
Pedales
Alloy Flat, With Replaceable Pins
Cadena
KMC X12
Portasilla
Tranz-X JD-YSP23J Dropper, 31.6x412mm, 125mm Travel, 0mm Offset
Caja Pedalera
BSA Threaded 73mm BB Shell
Geometria
| Frame Size | S | M | L | XL |
| Rider Height | 5’1″–5’5″ | 5’5″–5’9″ | 5’9″–6’1″ | 6’1″–6’5″ |
| (A) Frame Stack (mm) | 587 | 601 | 606 | 615 |
| (B) Frame Reach (mm) | 425 | 450 | 470 | 495 |
| (C) Head Tube Angle (°) | 67.5 | 67.5 | 67.5 | 67.5 |
| (D) Head Tube Length (mm) | 95 | 105 | 115 | 125 |
| (E) Seat Tube Angle (°) | 74.7 | 74.7 | 74.7 | 74.7 |
| Effective Seat Tube Angle (°) | 77.1 | 77.1 | 77.1 | 77.1 |
| (F) Seat Tube Length (mm) | 384 | 432 | 470 | 510 |
| (G) Effective Top Tube (mm) | 571 | 595 | 625 | 653 |
| (H) Bottom Bracket Height (mm) | 334.5 | 334.5 | 334.5 | 334.5 |
| (I) Bottom Bracket Drop (mm) | 38 (Drop) | 38 (Drop) | 38 (Drop) | 38 (Drop) |
| (J) Chainstay Length (mm) | 440 | 440 | 440 | 440 |
| (K) Wheelbase (mm) | 1174 | 1189 | 1206 | 1231 |
| (L) Standover Height (mm) | 725 | 726 | 725 | 725 |
