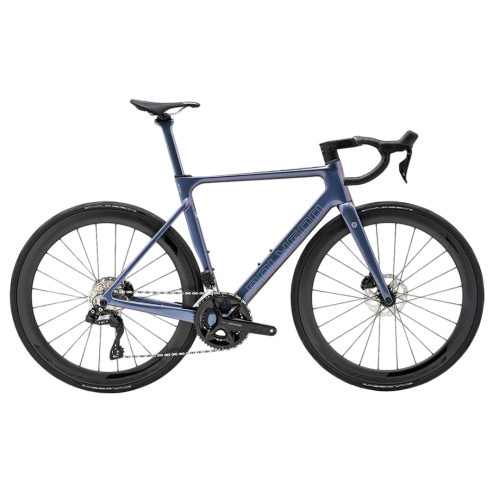

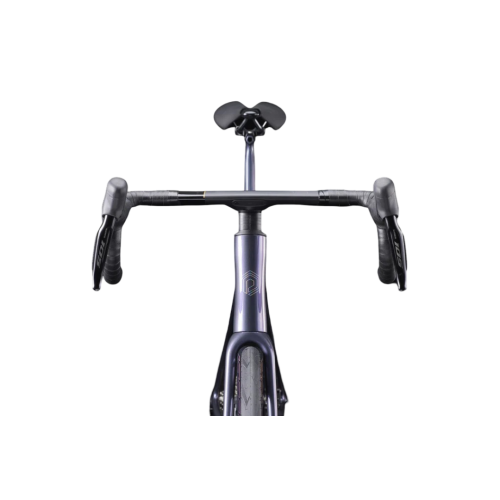

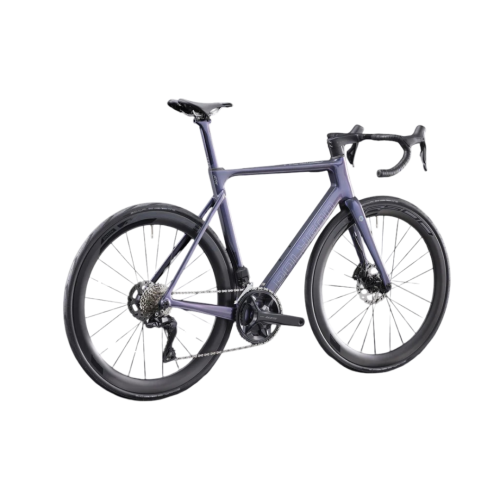

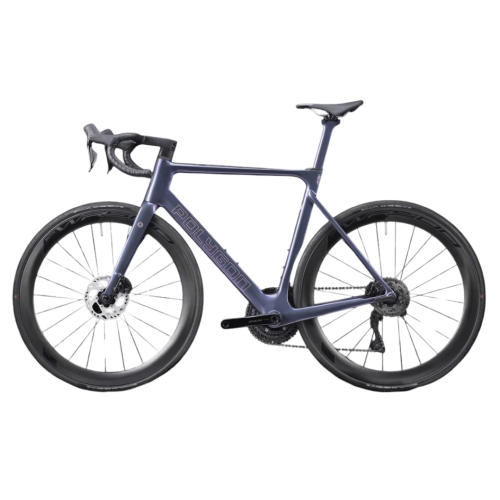

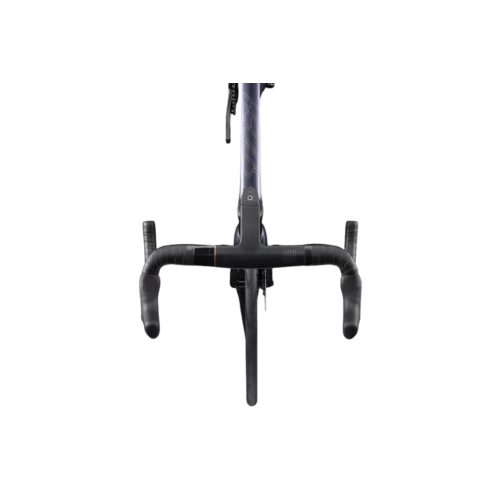

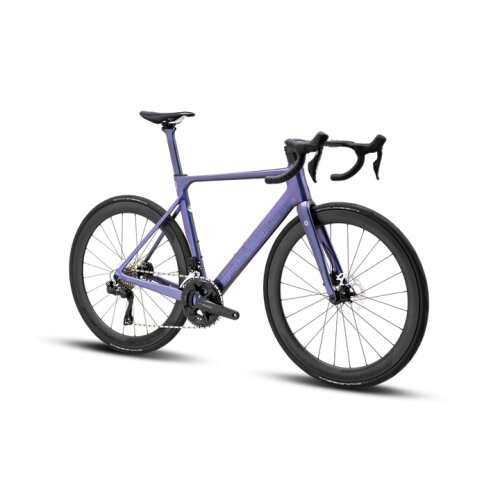

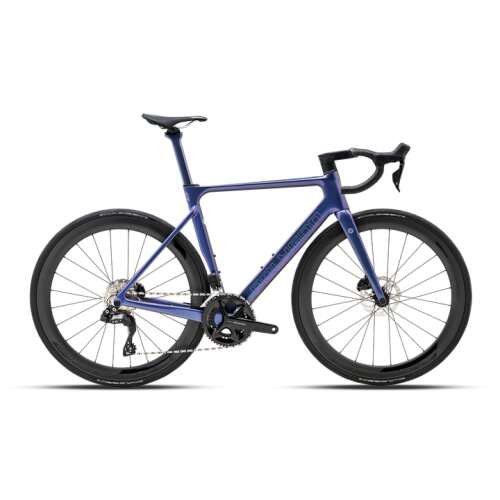

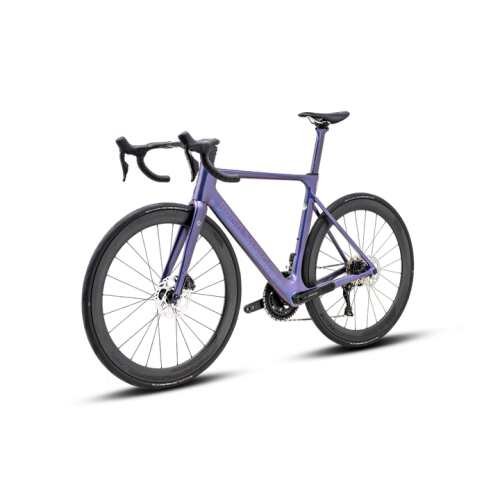

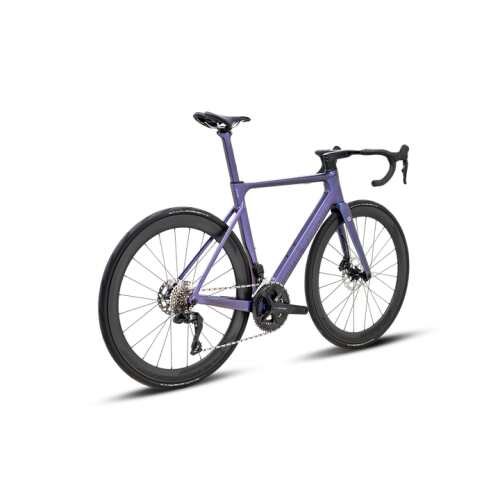

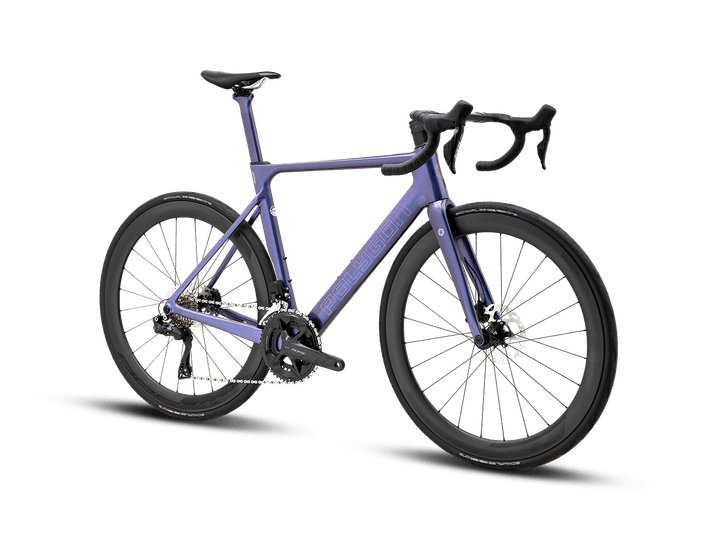

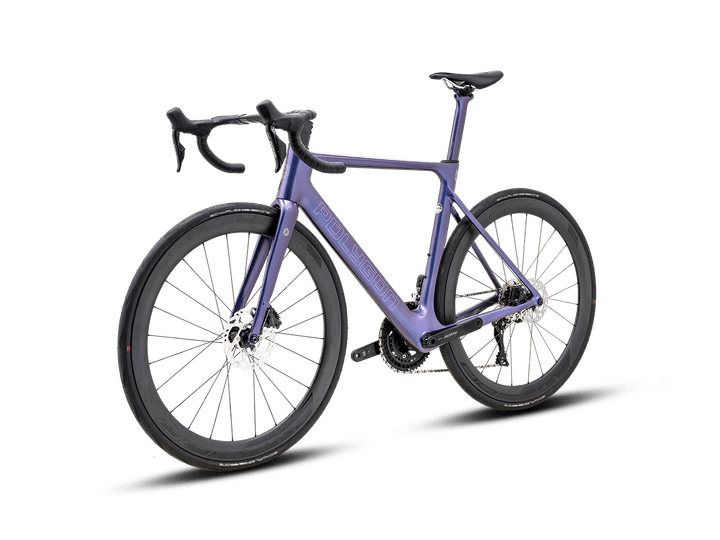

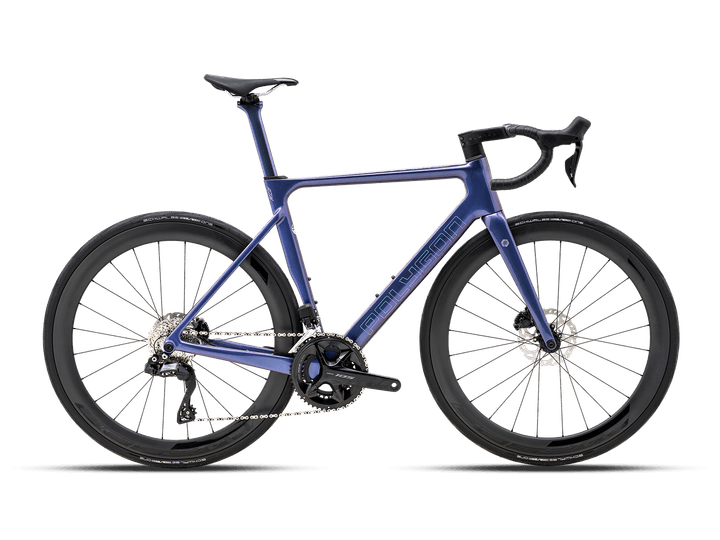

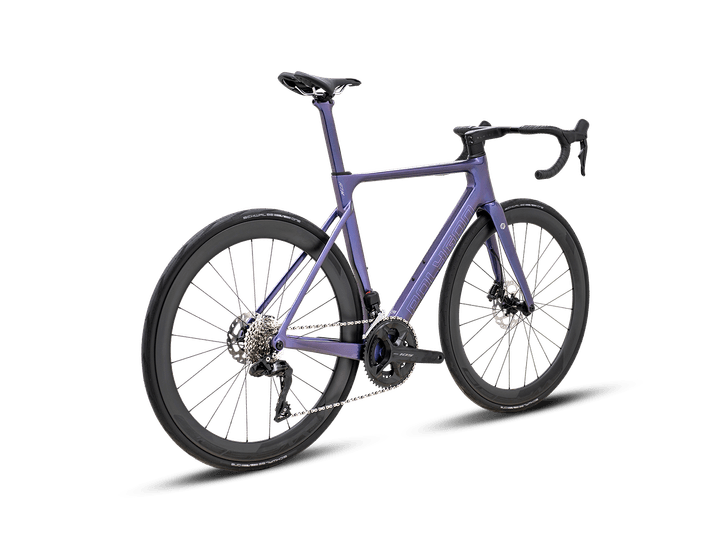

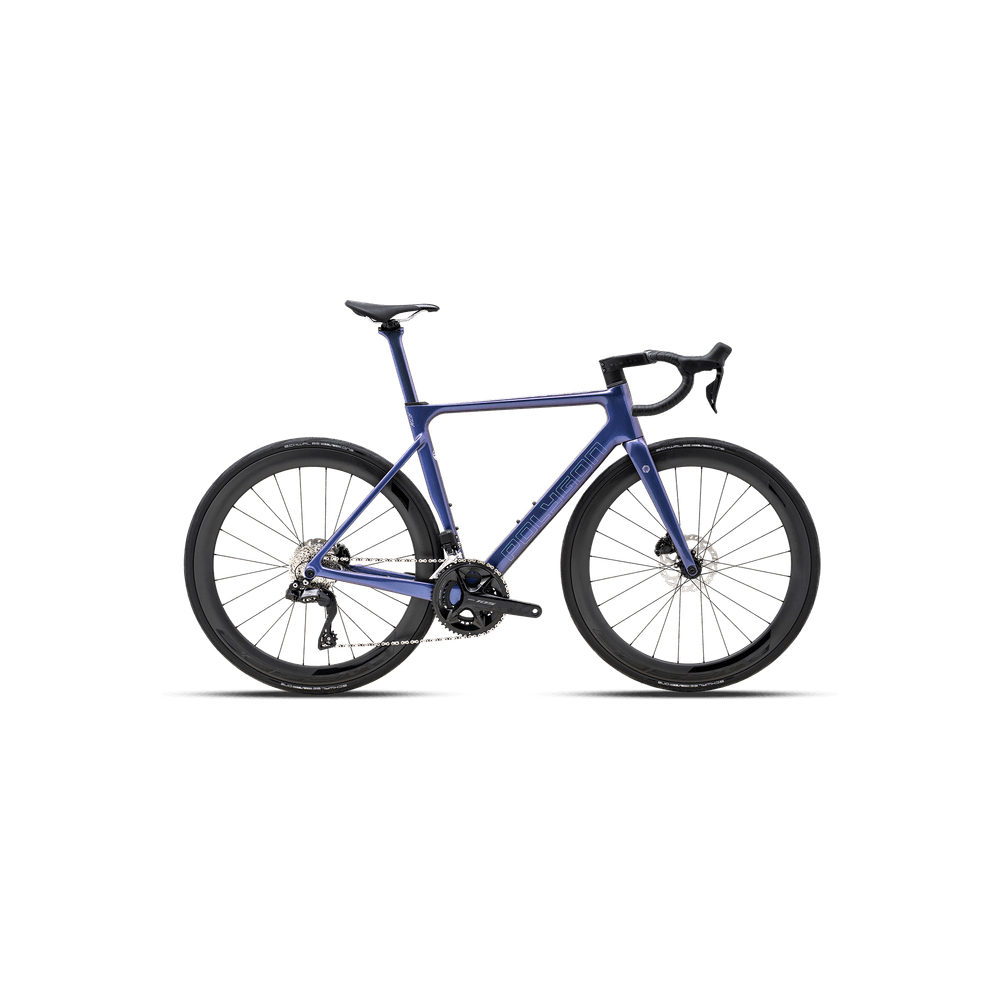

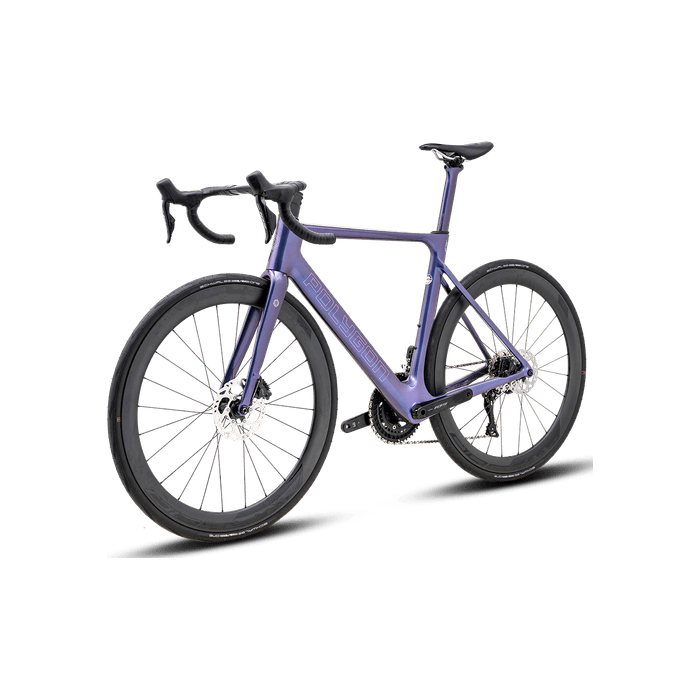

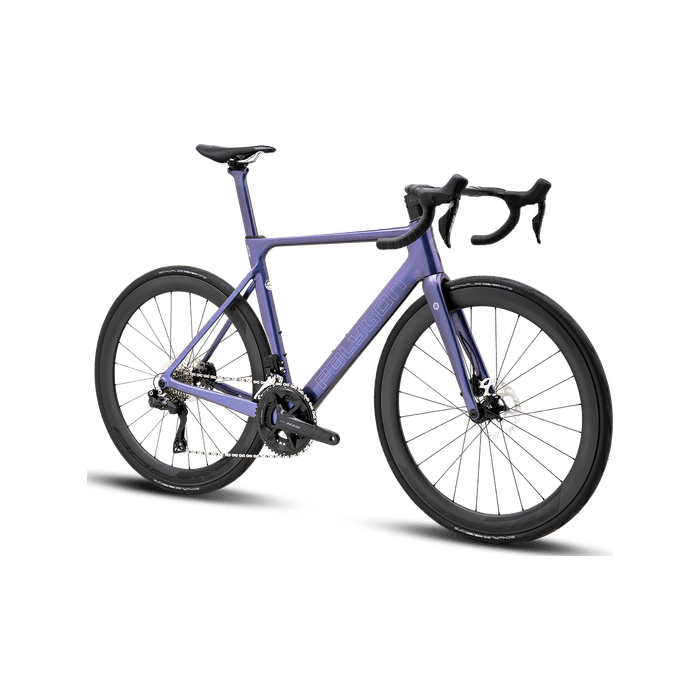

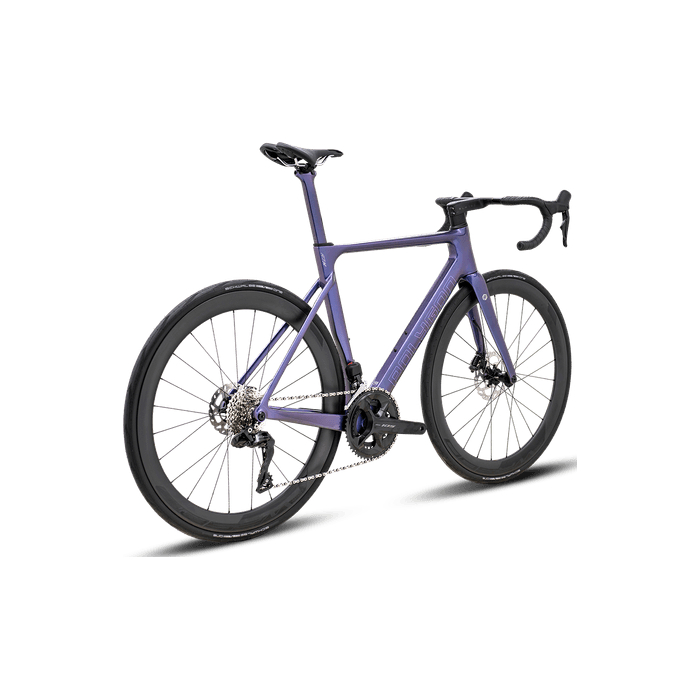

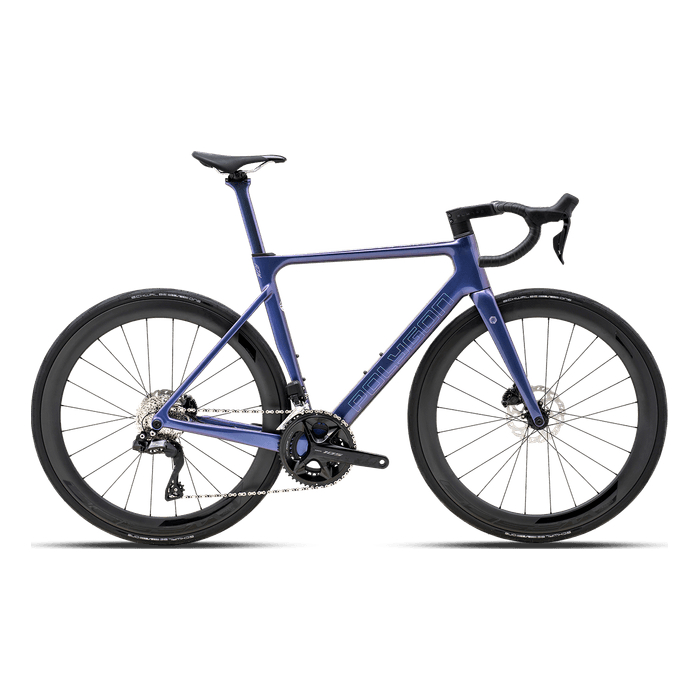

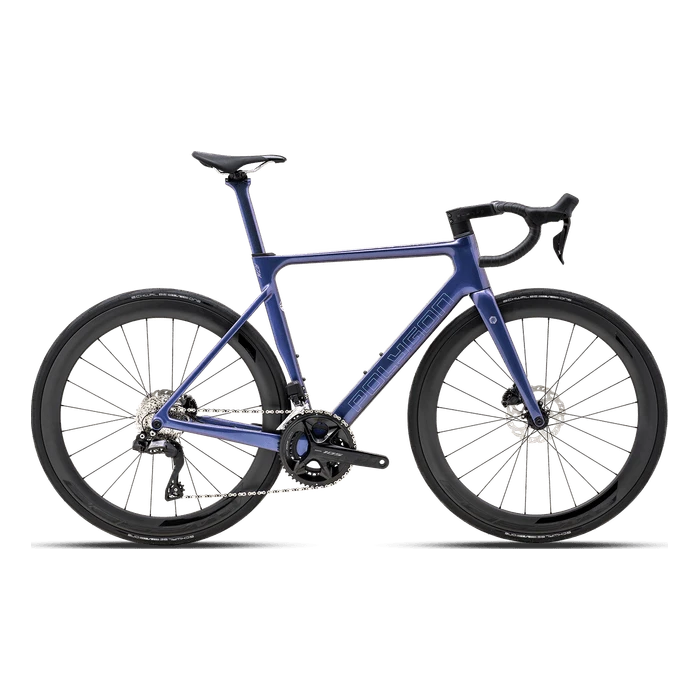

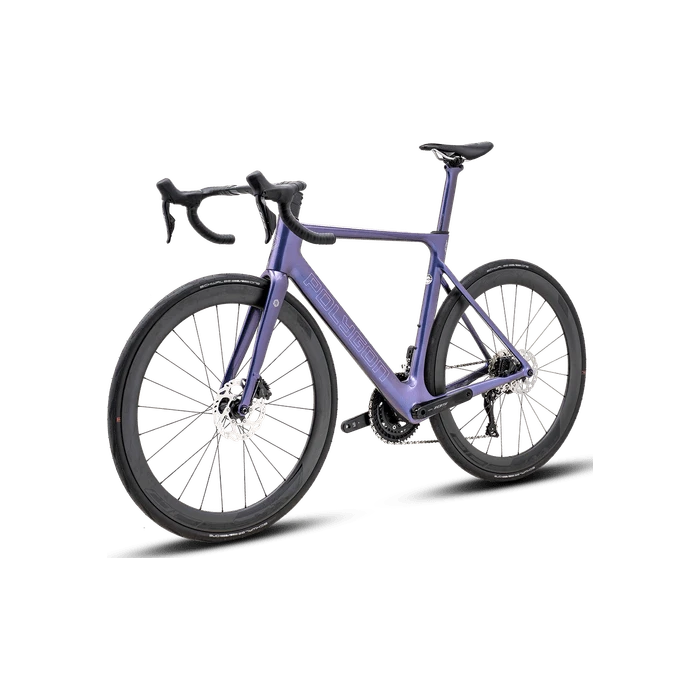

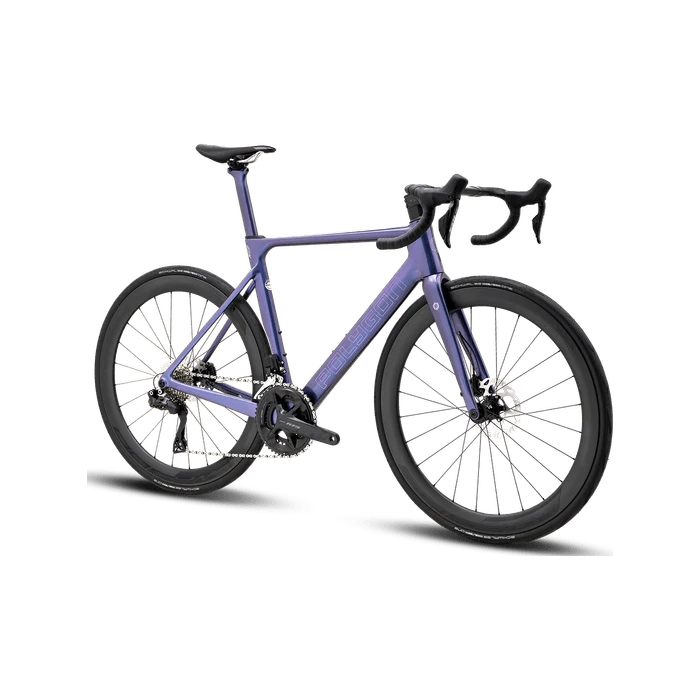

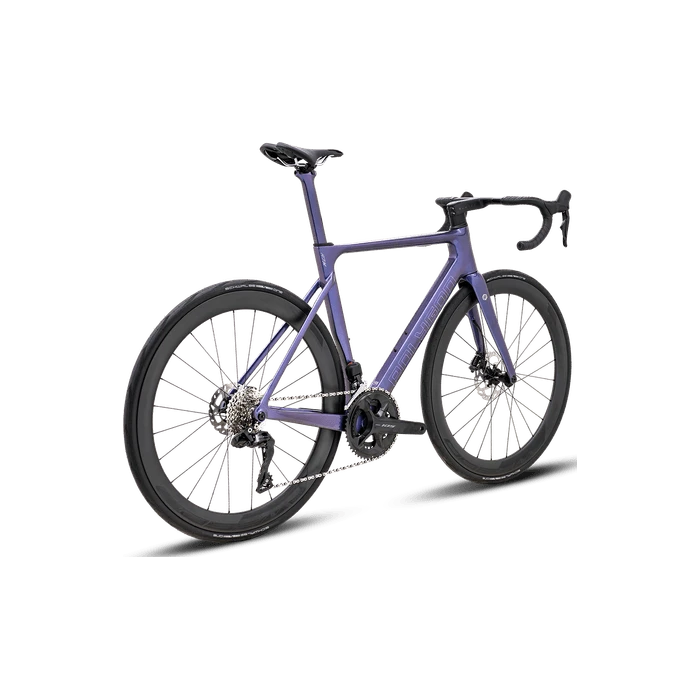

Polygon HELIOS A7X – 2×12 Shimano 105 Di2
$9.498.00012 cuotas sin interés de $791.500 Efectivo/transferencia: $7.123.500
Guía de Talles
- Guía de Talles
- ¿Como Medir?
| ALTURA | TALLE | MEDIDA | ENTREPIERNA |
| 158-165cm | XS | 48-51 | 71-74 |
| 165-170cm | S | 51-53 | 75-78 |
| 170-179cm | M | 53-55 | 79-88 |
| 179-186cm | L | 55-58 | 89-98 |
| 186-195cm | XL | 58-61 | 99-102 |
Descripción
Componentes
CUADRO
ACX Performance UCI Approved, Internal Cable Routing, Shimano BB-RS500 Press Fit Bottom Bracket, 12x142mm Thru-Axle, Flat Mount Disc
HORQUILLA
ACX Performance UCI Approved, 12x100mm Thru-Axle, Flat Mount Disc
TRANSMISION
CAMBIO TRASERO
Shimano 105 Di2 RD-R7150, 12-Speed
DESCARRILADOR
Shimano 105 Di2 RD-R7150, Braze-On
ERGOS
Shimano 105 Di2 ST-R7170, 12-Speed
PALANCAS
Shimano 105 FC-7100, HollowTech 2, 12-Speed, M:170mm, L-XL:172.5mm
PLATO
52/36T
PIÑON
Shimano 105 CS-R7100, 12-Speed, 11-34T
CADENA
KMC X12, 12-Speed
FRENOS
FRENO DELANTERO
Shimano 105 BR-R7170, Disco Hidráulico, 160mm Center Lock
FRENO TRASERO
Shimano 105 BR-R7170, Disco Hidráulico, 140mm Center Lock
RUEDAS
MAZA TRASERA
Entity WR5 Carbon Disc, 900g, Ancho Interno 21mm, Perfil de 50mm, 24H, Stainless Straight Pull Butte Spokes, Cinta Tubeless Instalada
CUBIERTAS
Schwalbe One Addix TLE, 700x28C
CÁMARA
80mm Presta Valve
PUNTOS DE CONTACTO
MANUBRIO
BLKTEC R8 Integrado, 400mm Width (S), 420mm Width (M-XL)
ASIENTO
Entity Flux2
PORTASILLA
Polygon Carbon Aero Seatpost, 35x306mm (XXS), 337mm (XS), 357mm (S-XL), 20mm Adjustable Offset
STEM
BLKTR8 Integrado, 100mm Length (XXS-S), 110mm Length (M-L), 120mm Length (XL), 0-Degree
Geometria
| Size | S | M | L |
|---|---|---|---|
| Seat Tube Length (F) | 500 | 520 | 545 |
| Seat Tube Angle (E) | 74.3° | 74° | 73.7° |
| Head Tube Length (D) | 130 | 145 | 160 |
| Head Tube Angle (C) | 72° | 72.3° | 72.3° |
| Effective Top Tube (G) | 530.42 | 543.04 | 555.14 |
| BB Height (I) | 271 | 271 | 271 |
| BB Offset (H) | 73 | 73 | 73 |
| Chainstay Length (J) | 415 | 415 | 415 |
| Wheelbase (K) | 983.9 | 991.1 | 1000.62 |
| Frame Reach (B) | 380 | 385 | 390 |
| Frame Stack (A) | 535.2 | 550.4 | 564.7 |
| Standover Height (L) | 763.21 | 780.8 | 802.52 |
*Todas las medidas en mm
