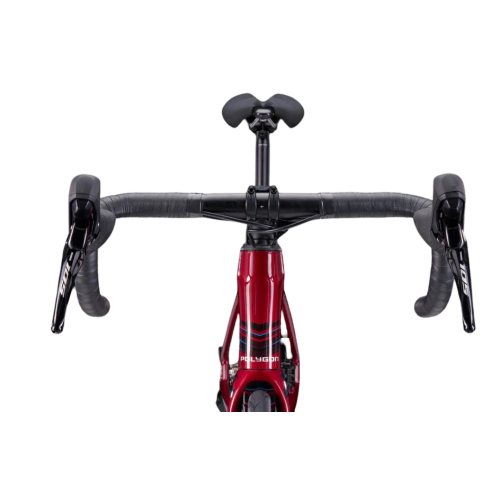

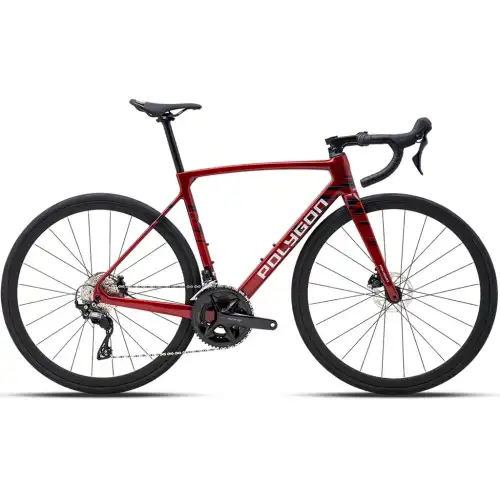

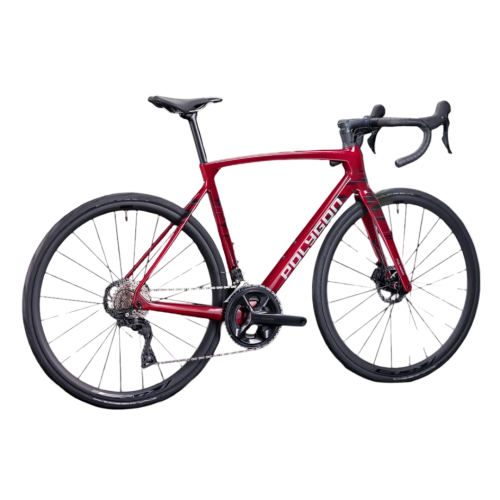

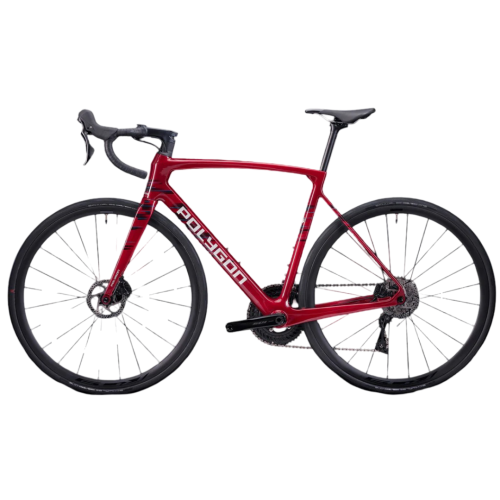

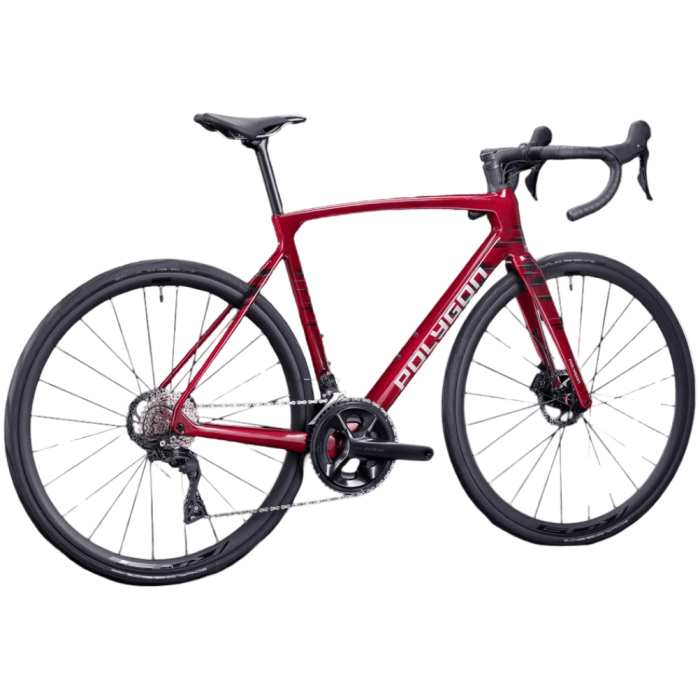

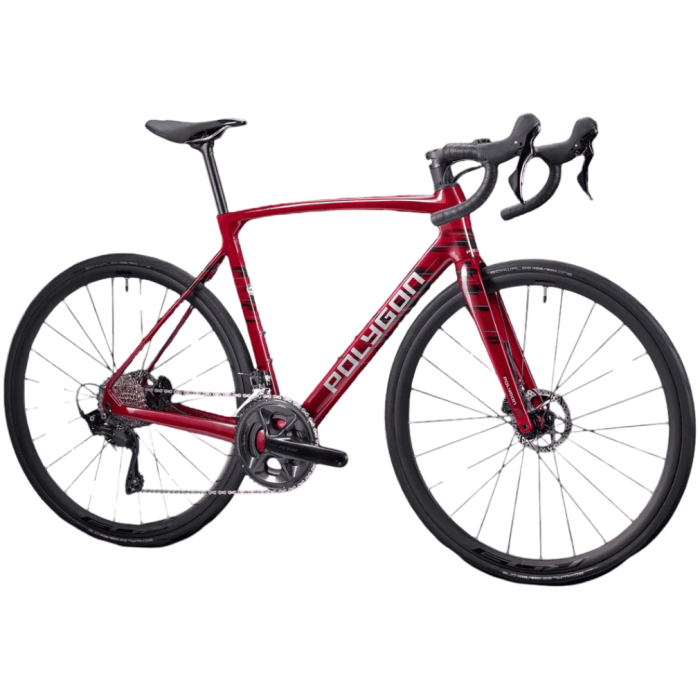

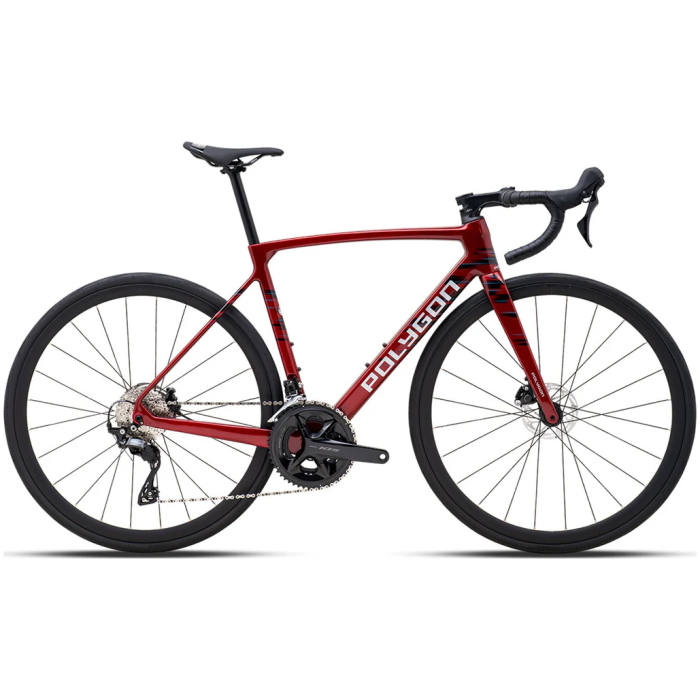

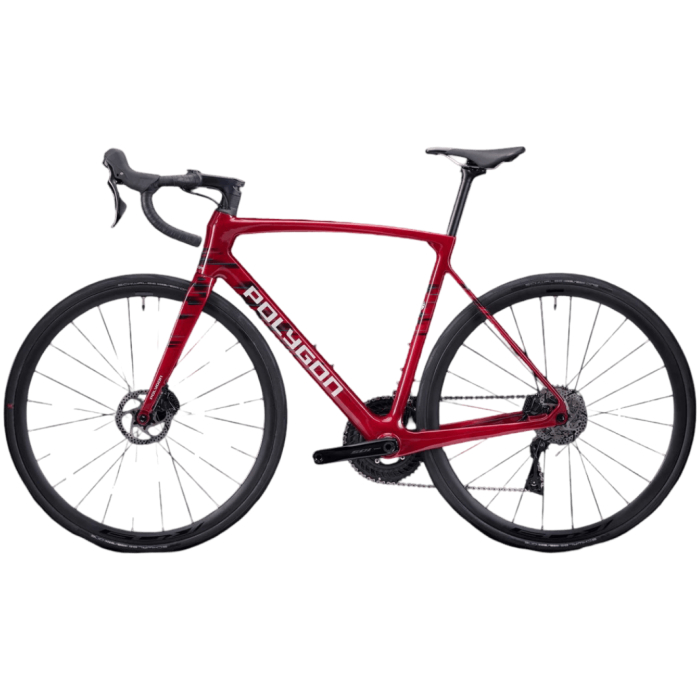

Polygon Strattos S7D – 2×12 Shimano 105
$4.000.00012 cuotas sin interés de $333.333 Efectivo/transferencia: $3.000.000
Guía de Talles
- Guía de Talles
- ¿Como Medir?
| ALTURA | TALLE | MEDIDA | ENTREPIERNA |
| 158-165cm | XS | 48-51 | 71-74 |
| 165-170cm | S | 51-53 | 75-78 |
| 170-179cm | M | 53-55 | 79-88 |
| 179-186cm | L | 55-58 | 89-98 |
| 186-195cm | XL | 58-61 | 99-102 |
Descripción
Componentes
CUADRO
CUADRO
ACX Carbon All-Round Aprobado por UCI, Cableado Interno, Pressfit BB86, 12x142mm
HORQUILLA
HORQUILLA
Full Carbon, Cónica 1-1/8″ a 1-1/2″, Freno a Disco Flat Mount

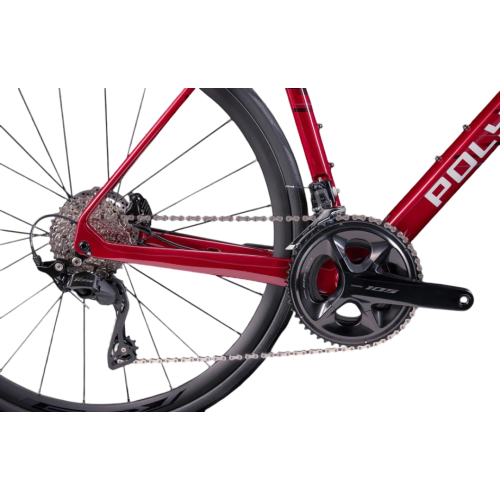

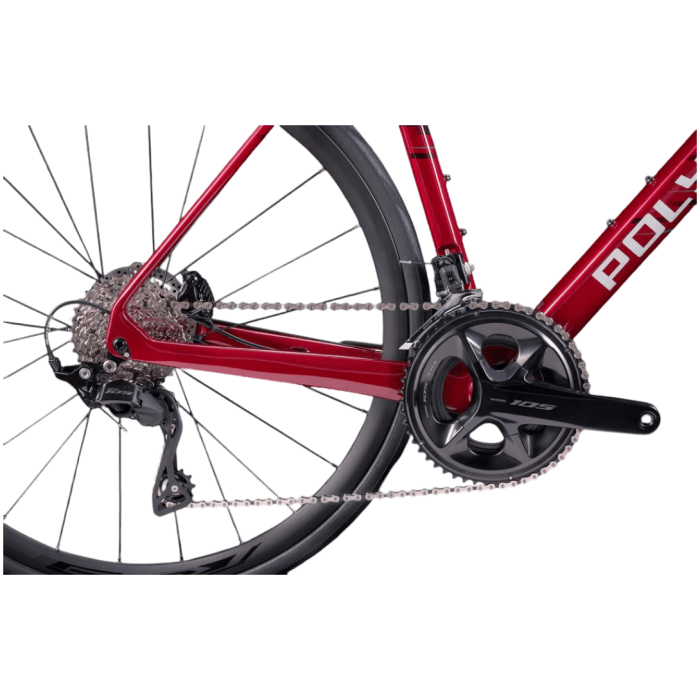

TRANSMISION
CAMBIO TRASERO
Shimano 105 RD-R7100
DESCARRILADOR
Shimano 105 FD-R7100 DM
ERGOS
Shimano 105 ST-R7120, 2×12-Speed Dual Control Lever
PALANCA
Shimano 105 FC-R7100
PLATO
50/34T
PIÑON
Shimano 105 CS-R7101, 11-34T
CADENA
KMC X-12
FRENO

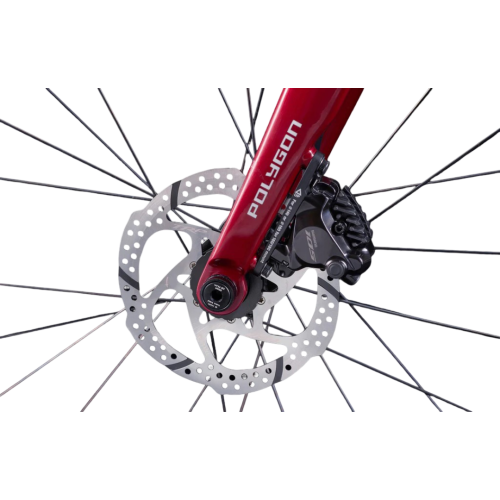

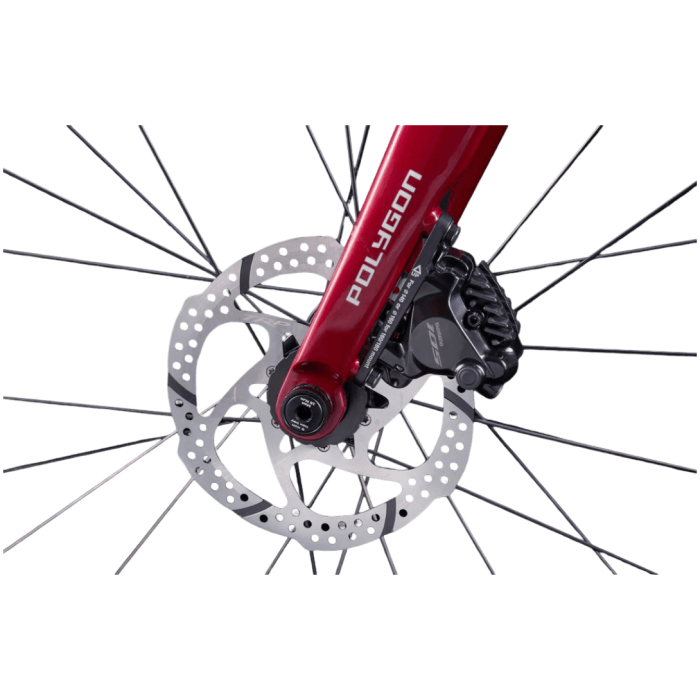

FRENO DELANTERO
Shimano 105 BR-R7120 Disco Hidráulico, 140mm 6T
FRENO TRASERO
Shimano 105 BR-R7100 Disco Hidráulico, 140mm 6T
RUEDA
MAZA TRASERA
12X142mm, 6T
LLANTA
Entity Alloy Doble Pared, 30mm Depth, 24H, Tubeless Ready
CUBIERTA
Schwalbe One, Addix, Raceguard, Microskin, 700x28C, Tube Type*
PUNTOS DE CONTACTO

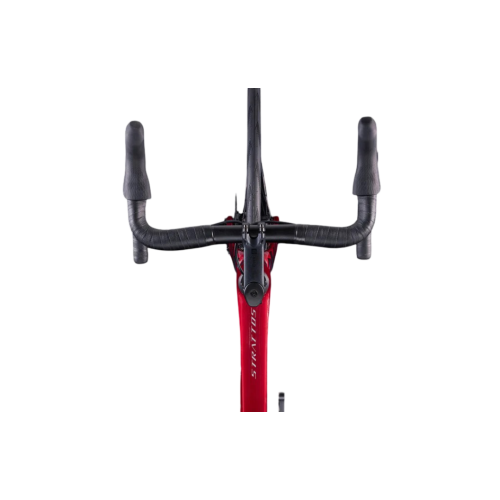

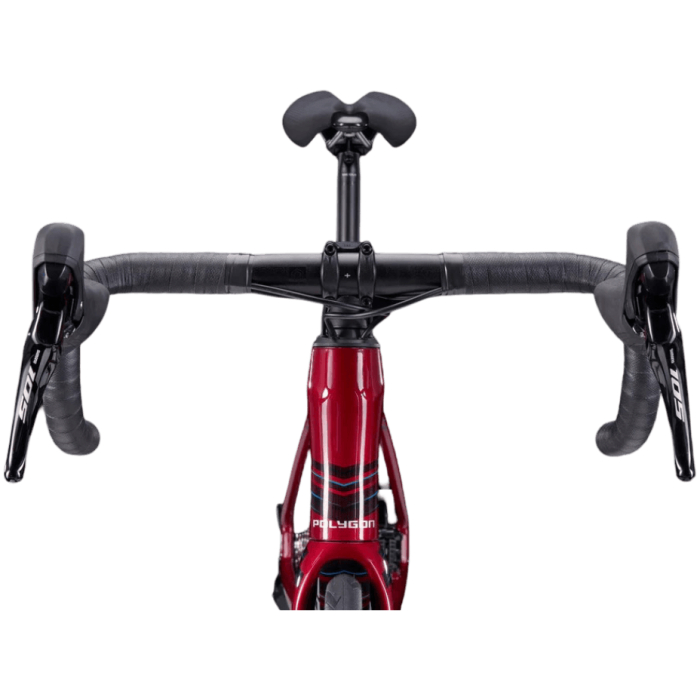

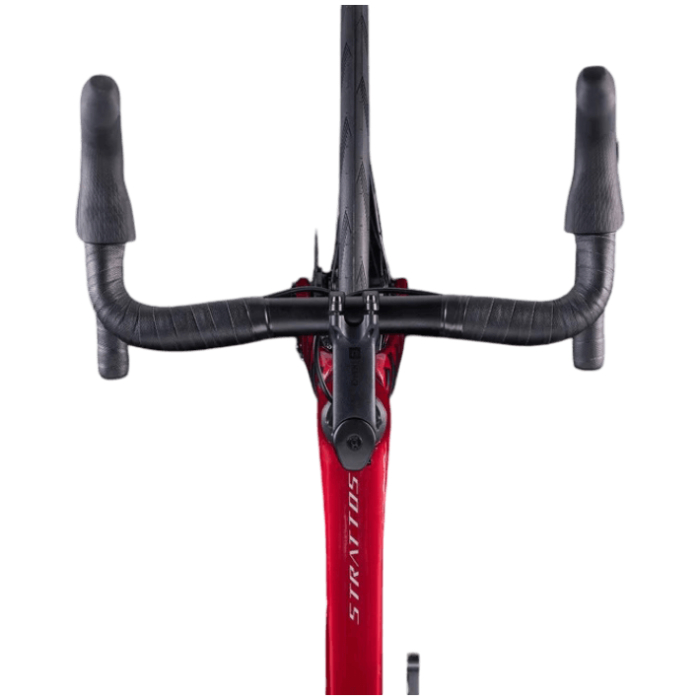

MANUBRIO
Entity Xpert Alloy, 31.8mm, 125mm Drop, 70mm Reach
ASIENTO
Entity Flux2, Cr-Mo Ø 7mm
PORTASILLA
Entity Xpert Alloy, 27.2 x 350mm, 15mm, Integrated Shape W/ Bolt
STEM
Entity Xpert Alloy, 31.8mm, 10°
Geometry
| S | M | L | |
| (A)Stack | 511 | 534 | 558 |
| (B) Reach | 384 | 387 | 390 |
| (C) Head Tube Angle | 72.5 | 73 | 73 |
| (D) Head Tube Length | 105 | 130 | 155 |
| (E) Seat Tube Angle | 74.5 | 74 | 73.5 |
| (F) Seat Tube Length | 474 | 500 | 525 |
| (G) Top Tube Effective | 525 | 540 | 555 |
| (H) Bottom Bracket Height | 271.5 | 274 | 274 |
| (I) Bottom Bracket Offset | 72.5 | 70 | 70 |
| (J) Chainstay Length | 415 | 415 | 415 |
| (K) Wheelbase | 977 | 985 | 995 |
| (L) Standover Height | 748 | 776 | 801 |
